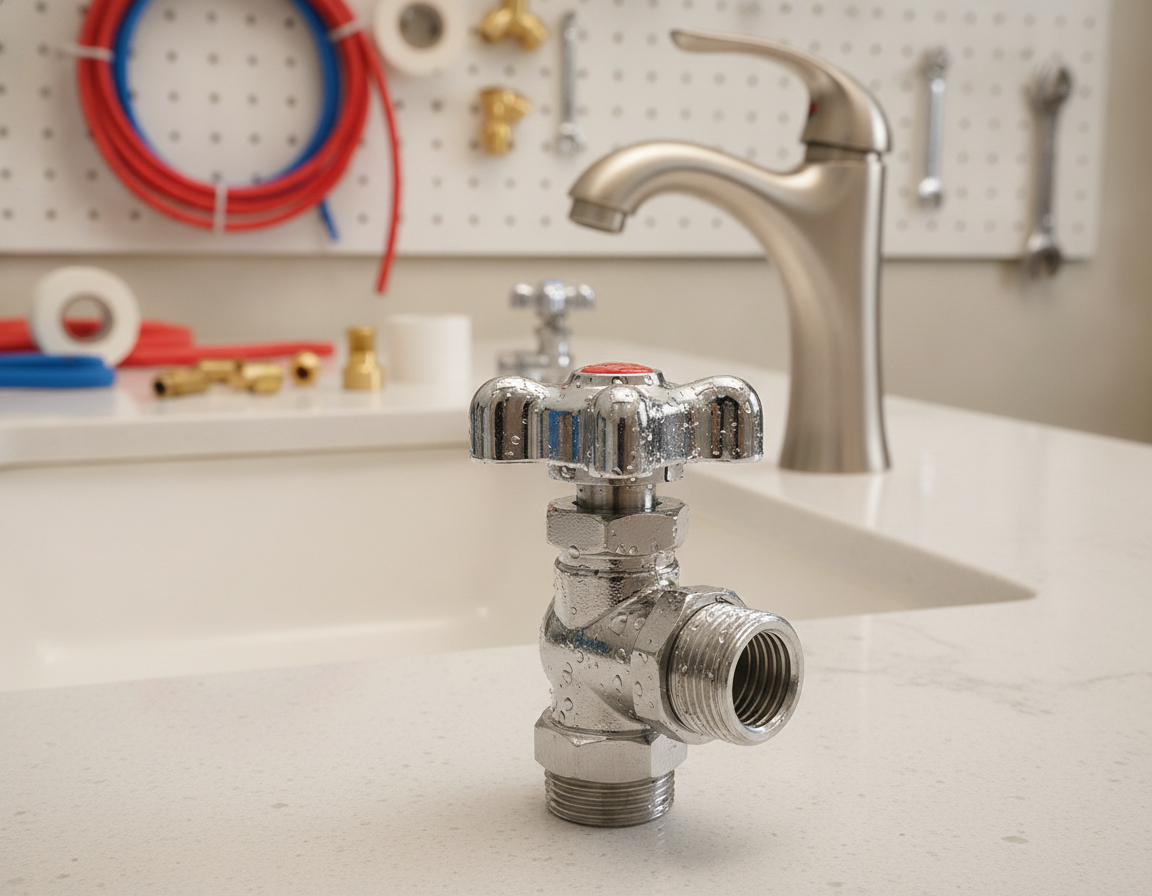

An angle stop is a compact, L-shaped shutoff valve where a water line connects to a fixture. These valves are commonly installed beneath sinks, behind toilets, and near appliance hookups. When a Plumbing Angle Stop works properly, it allows one fixture to be shut off without interrupting water to the whole home. That means maintenance jobs can be completed with less disruption.
Angle Stop Valve
In many homes, angle stops measure about 3–6 inches and redirect water at a 90-degree angle toward the fixture. Today’s installations often use quarter-turn, ball-style Angle Stop Valve models. These are quicker to operate and tend to last longer. When an angle stop becomes leaky, replacement can prevent water-damage risk and make future service easier.
Key Takeaways
- Plumbing Angle Stops let you shut off water to one fixture without touching the house main.
- Angle Stops Plumbing are usually found beneath sinks, behind toilets, and near fixtures where quick access matters.
- An Angle Stop Valve typically measures 3–6 inches and turns water 90 degrees toward the fixture.
- Quarter-turn designs are now preferred for reliability and faster shutoff.
- Replace valves that leak, corrode, or become difficult to operate to avoid water damage.
What An Angle Stop Is And Why It Matters
The angle stop is a compact shutoff valve installed where a water line meets a fixture. It controls water to a single fixture so repairs, upgrades, or replacements can happen without closing the whole-house main. Homeowners, plumbers, and building inspectors rely on it to keep repairs quick and contained.
Simple Definition And Explanation
An angle stop is a right-angle valve installed on the supply line feeding a fixture. Angle Stop Valves come in several styles, including older multi-turn stem designs and newer quarter-turn ball designs. The Plumbing Angle Stop fits neatly under sinks and behind toilets while saving space.
Common Angle Stop Locations In A Home
Plumbing Angle Stops are commonly found under kitchen and bathroom sinks. They sit at the back of cabinets where the supply line enters. Toilet angle stops are normally mounted on the wall behind or beside the toilet tank. Angle stops may also appear at appliance connections, including dishwashers, ice makers, washing machines, and some water-heater cold-supply lines.
Practical Benefits For Homeowners
One main benefit of an Angle Valve For Sink is isolation. A working Plumbing Angle Stop lets you shut off one fixture to replace a faucet or repair a leak. This keeps small leaks from turning into major water damage and limits disruption during repairs.
Convenience is another key benefit. Angle Stops Plumbing are space-saving, quick to access, and reduce repair downtime. Periodic exercising of the valve keeps it operable. Upgrading old multi-turn stops to modern quarter-turn Angle Stop Valve models speeds emergency responses and lowers stress.
Difference Between Angle Stop And Angle Seat Valve
Residential angle stops are made for fixture-level potable water service. They are designed for sinks, toilets, and common appliances. An industrial Angle Seat Valve is a different type of valve. It is built for higher-pressure, higher-temperature, or corrosive applications in steam, chemical, and HVAC systems. Angle seat valves use metal seats and pistons for durability in demanding environments, while an Angle Stop is a simple residential fixture shutoff.
Angle Stop Types And How To Choose One
Selecting the correct angle stop involves comparing materials, operating style, connection type, and extra features. This guide compares common options to help homeowners and plumbers choose a durable, code-compliant fixture shutoff.
Angle Stop Materials
Brass is widely used as the standard material for Angle Stops. It resists corrosion and can last 10–20 years, making it ideal for Quarter-Turn Angle Stops. Stainless steel bodies are best for humid basements, coastal areas, and outdoor hose bibs to prevent rust. Plastic-bodied stops are cheaper, but they are typically less durable and can degrade in hot-water service. Always choose a Lead-Free Angle Stop for potable water in the United States to meet federal and state standards.
Valve Operation Styles
Quarter-turn valves use a ball or disc and open with a 90-degree turn. They offer easy operation and better resistance to mineral buildup, which makes them useful for frequent operation and emergencies. Multi-turn valves use a rising stem and require several rotations for full shutoff. They provide finer flow control but are more likely to leak or stick in older homes.
Common Connection Styles
Compression Angle Stop fittings use a nut and ferrule, making them common for copper and CPVC stub-outs. They are popular in remodels because they can be installed without soldering or open flame. Sweat Angle Stop joints are soldered for a slim, permanent seal and work well in tight spaces where a torch is acceptable. FIP-threaded valves attach to male adapters and usually require PTFE tape or pipe-thread sealant. Push-Fit Angle Stop models, including SharkBite-style options, can slide onto copper, CPVC, or PEX without special tools. Push-fit designs are handy for DIY jobs and cramped spaces, while Compression Angle Stop fittings are common where future removal or rework may be needed.
Extra Angle Stop Features
Some Angle Stop Valve designs include a built-in Water Hammer Arrestor Angle Stop. These use a piston or air chamber to absorb shock from quick-closing fixtures and reduce noisy banging. In humid or coastal locations, a Coastal Angle Stop with corrosion-resistant finishes, stainless internals, and anti-seize stems can improve service life. A Lead-Free Angle Stop marking on the body helps confirm the valve is intended for potable-water use. Choose a valve that matches the pipe material, connection type, and service conditions to reduce premature failure.
Plumbing Angle Stops Guide
Plumbing angle stops control water flow to fixtures with a right-angle design. Choosing the right size and style affects performance, ease of service, and compliance. The sections below explain valve markings, typical home locations, lead-free requirements, and modern installation trends.
Common Valve Sizes And How To Read Markings
In homes, inlet fittings are usually 1/2 inch nominal, while fixture outlets are often 3/8 inch compression. Valve labels may show a format like 1/2 x 3/8 or 1/2” MIP x 3/8” OD. This identifies the inlet and outlet sizes. Some valves are marked 3/8 COMP to indicate a compression outlet. Before buying, confirm that the inlet matches your supply piping, whether it is 1/2 FIP, 1/2 MIP, 1/2 sweat, or another style.
Common Home Placement
Angle stops are usually installed under kitchen sinks, beneath bathroom vanities, and behind toilets. Dedicated stops may also serve dishwashers, ice makers, washing machines, water heaters, and other appliances. Under-sink stops usually sit at the back of cabinets, while toilet stops remain visible behind the tank.
Lead-Free Code Notes For Drinking Water
In the U.S., valves for drinking-water lines must meet lead-free standards for wetted surfaces. Choose a Lead-Free Angle Stop that has clear markings, documentation, or certification details. Contractors should follow local plumbing codes and provide the appropriate certifications, testing information, and warranty support.
Recommended Angle Stop Standards
Modern Angle Stops often use quarter-turn ball designs. A Quarter-Turn Angle Stop provides fast shutoff in emergencies and, when made from brass, can offer long service life. Many plumbers standardize on brass 1/2 x 3/8 angle stops for sinks and toilets because they simplify stocking, replacement, and maintenance. New installations increasingly include models with arrestors, lead-free markings, and other potable-water protection features.
Quick Checklist For Choosing Angle Stops
- Check Valve Markings before buying so the inlet type and outlet size match your system.
- Match the Angle Valve For Sink or toilet to supply hose fittings and tank threads.
- Use a Lead-Free Angle Stop whenever the valve is installed on a potable-water line.
- For many homes, standardizing on Quarter-Turn Angle Stop 1/2 x 3/8 valves can simplify maintenance and improve reliability.
How To Install And Replace Angle Stops Safely
When tackling a plumbing angle stop, it is important to know when to shut the main water supply. The main usually needs to be closed only when the existing stop is damaged. For many under-sink jobs, the line can be isolated at the fixture valve itself. Always open a downstream faucet to relieve pressure and keep towels and a bucket ready.
Before starting, gather all needed tools and supplies. Common tools include an adjustable wrench, a backup wrench, a tube cutter, and a deburring tool. Emery cloth, PTFE tape, a marker, and a flashlight are also helpful for clean preparation and inspection. For push-fit work, use the manufacturer’s push-fit angle stop and a PEX stiffener where needed; for compression jobs, keep spare ferrules and nuts available. Penetrating oil can help with stuck fittings, while a heat shield is useful around sweat connections.
Checklist:
- Two-wrench setup for secure tightening
- Tube cutter and deburring tool
- PTFE tape and marker
- Push-fit valve and required stiffener
- Replacement ferrules, compression nuts, penetrating oil, and towels
Follow specific steps for each connection type. For compression, slide the nut and ferrule onto the pipe, then seat the valve against the pipe shoulder. Hand-tighten the nut and finish with a 1/4–1/2 turn using a wrench. When tightening the outlet nut, use a backup wrench to prevent twisting the stub-out.
For push-fit installation, cut the pipe square and deburr it. Mark the insertion depth and push the valve straight on to the depth mark. After installation, give the fitting a light tug to confirm it has locked in place. Push-fit angle stop fittings can work with copper, CPVC, and PEX, but PEX may require a stiffener depending on the product.
Sweat angle stop connections need careful preparation and heat control. Remove or protect nearby seals and internals, clean and flux the pipe and valve cup, heat the joint evenly, and solder. After cooling, wipe the joint to remove residue. A heat shield or removal of heat-sensitive parts helps prevent damage during soldering.
For threaded connections such as a FIP angle stop, wrap male threads with PTFE tape using three to four wraps and start the valve by hand to avoid cross-threading. Tighten until aligned and sealed, then connect the supply line and test slowly.
Test the work by turning water on slowly and watching the joints. Open the angle stop and fixture in stages rather than all at once. Use a dry towel or tissue to reveal small weeps around fittings. Operate the valve, let pressure stabilize, and inspect again for slow leaks.
Be aware of common mistakes that can lead to failures. Over-tightening compression nuts can deform ferrules and cause leaks. Never reuse a damaged ferrule; cut back the pipe and install a new ferrule when needed. Avoid sweating valves without protecting seals or removing internal parts. Do not twist while inserting push-fit fittings, and always follow manufacturer depth marks.
Common trouble points include a frozen or leaky stop that forces a main shutoff, misapplied PTFE tape that causes threaded leaks, and tightening outlet nuts without a backup wrench. Keep spare parts nearby and follow torque guidance for each valve type to reduce callbacks.
Common Angle Stop Issues And Fast Fixes
Homeowners often encounter small leaks and frozen handles with angle stops. A quick assessment shows whether a simple fix is enough or a full replacement is needed for long-term reliability.
Stem Or Handle Leaks
Stem seepage in older multi-turn valves often comes from a loose packing nut. A careful 1/8-turn tightening with an adjustable wrench may stop the leak. If water still seeps, the internal washer, O-ring, or packing may be worn and the valve may need replacement.
Stuck Valves
Mineral Buildup, corrosion, and rust commonly cause stuck angle stops. Applying a penetrating product such as WD-40 for about ten minutes may help. Gently rocking the handle back and forth may free the valve. If it remains stuck or the handle is brittle, replace the stop to avoid a flood.
Leaks At Compression Joints
A continuing compression-joint leak often points to a crooked ferrule, damaged pipe end, or poor seating. To fix it, loosen the nut, reseat the ferrule, and clean the pipe with emery cloth. If the ferrule is worn, cut back the pipe, install a new ferrule, and tighten carefully to prevent more leaks.
When To Upgrade
Homes with frequent leaks, frozen handles, visible corrosion, or valves over ten years old should consider modern angle stops. A Quarter-Turn Upgrade to a ball-style valve can improve shutoff speed, resist Mineral Buildup, and make emergency service more dependable.
Simple Troubleshooting Checklist
- For stem drips, tighten the packing nut slightly and recheck.
- Use Penetrating Oil and gentle motion for stuck valves.
- Reseat the ferrule or cut back the pipe for compression leaks.
- Upgrade to quarter-turn stops when valves freeze or leak repeatedly.
Turning angle stops occasionally and inspecting for corrosion can reveal problems before they become emergencies. Fixing leaks, stuck valves, and weeping joints promptly helps prevent bigger repairs and supports Angle Stop Reliability.
Conclusion
This Plumbing Angle Stops Guide shows why small fixture shutoff valves are so important. They let homeowners shut off one fixture without disrupting water to the whole house. Choosing the right material, operation style, and connection type makes repairs easier. It can also lower the chance of water damage during fixture upgrades and maintenance.
For best performance, the industry often recommends lead-free, quarter-turn brass 1/2 x 3/8 stops. Integrated arrestors are also useful where water hammer is a concern. Homeowners should periodically test valves and replace Plumbing Angle Stops that leak, stick, or corrode. Depending on valve type and job difficulty, parts may range from $6 to $60, while professional installation may cost $75 to $200.
If installation is uncertain, consulting a licensed plumber is wise. A plumber can ensure code compliance and provide warranty-backed work. That approach helps protect fixtures, reduce risk, and make future maintenance easier. It also supports current Angle Stops Plumbing best practices for today’s residential systems.
