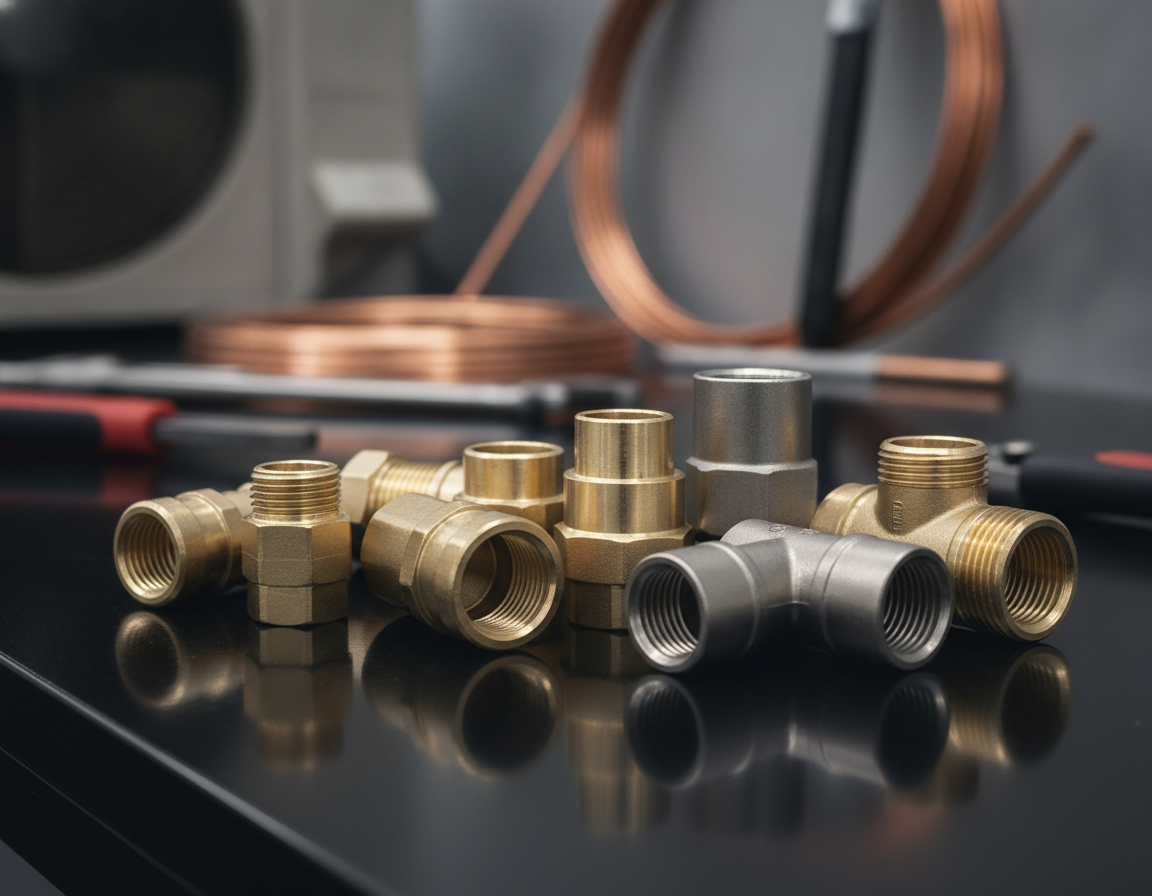

Female compression fittings give installers a clean and efficient approach for connecting pipes and tubing. They eliminate the need for solder or welded joints. This guide explains the basics of female compression fittings, showing how the compression nut and ferrule create a tight seal. It also emphasizes their importance in both plumbing and HVAC applications.
3/8 Compression Coupling
Opting for high-quality pipe fittings can significantly reduce energy losses. That can reduce the risk of refrigerant or water leaks, which can damage the environment. HVAC systems, which include components like compressors, condensers, expansion valves, and evaporators, require robust connections. Matching the appropriate female compression fitting and compatible materials—such as brass, copper, stainless steel, PVC, or PEX—is necessary for long-term system performance.
In many plumbing systems, PEX or PVC with compression fittings are favored for their ease of service and low heat exposure. In comparison, refrigeration lines require fittings that can resist thermal fatigue and keep a seal across a wide temperature range. InstallationPartsSupply.com and its product lines serve these needs, offering common sizes and parts such as ferrules and compression nuts.
Main Points
- A Female Compression Fitting uses a compression-nut and ferrule assembly to seal without soldering.
- Choosing the correct material—brass, copper, stainless, PVC, or PEX—limits corrosion and failure.
- Correct fittings lower energy loss and limit refrigerant or water leaks in HVAC and plumbing systems.
- Compression fittings guide resources and suppliers like InstallationPartsSupply.com make easier part selection.
- Review ferrule condition and tighten per manufacturer torque to help create a long-lasting seal.
Compression Fittings And HVAC Vs Plumbing Applications Explained
Compression fittings fasten pipes and tubing without solder or welding. They are ideal for copper, PEX, PVC, and stainless lines where heat or flame is not practical. Many installers purchase parts from Installation Parts Supply to help maintain consistent quality and fit.
What Compression Fittings Are And How They Seal
A compression fitting includes a nut and a ferrule olive pressed against the pipe by the fitting body. The tightening action compresses the brass ferrule or sleeve, which presses into the outer pipe and forms a seal. This mechanical action demonstrates the common question of what is a compression fitting by showing how mechanical compression creates a leak-tight joint.
How HVAC Fittings Differ From Plumbing Fittings
HVAC fittings must tolerate refrigerants, wider temperature swings, and thermal fatigue. Plumbing fittings focus on potable water, wastewater, and pressure from building systems. For HVAC and plumbing fitting selection, selection depends on media, service temperature, and pressure ratings.
HVAC systems like split systems, VRF, and rooftop units often use copper fittings and brazed joints for refrigerant lines. Plumbing applications often favor PEX compression and PVC for drains, where solvent welds or crimp systems are common.
Common Materials Used In Compression Fittings
Copper fittings offer excellent thermal conductivity and corrosion resistance. Brass fittings and ferrules withstand wear and are common in many compression fittings. Stainless steel works well in corrosive or high-pressure environments.
PEX compression works well in domestic water lines because it handles freeze-thaw cycles and is flexible. PVC continues to be a low-cost option for drains and certain chilled-water circuits when pressure is low.
| Material | Primary Use | Benefits | Drawbacks |
|---|---|---|---|
| Copper Components | Refrigerant piping and potable water | Strong conductivity with durable performance | Costlier with some risk of physical damage |
| Brass Components | Ferrules, nuts, and compression fittings | Strong machinability with corrosion protection | Galvanic corrosion risk if poorly matched |
| Stainless Steel | High-pressure or corrosive systems | Excellent durability with corrosion resistance | More expensive and harder to machine |
| PEX Material | Domestic water systems | Freeze-resistant with flexible handling | Requires compatible PEX compression fittings |
| PVC Pipe | Drains and low-pressure chilled water | Economical with straightforward installation | Limited in hot or pressurized applications |
Fitting Selection, Energy Efficiency, And Leak Prevention
Selecting the proper fitting lowers leak risk and maintains system pressure. For refrigerant circuits, a poor joint can release refrigerant and lower efficiency. Correctly matched fittings and seals cut maintenance and lower energy waste.
Matching the right ferrule type and matching copper fittings or PEX compression hardware reduces the chance of galvanic corrosion and thermal fatigue. This approach supports service life and keeps HVAC and plumbing systems running efficiently.
Understanding Female Compression Fittings
A female compression fitting connects and seals a pipe or tube end when a nut compresses the ferrule olive against the fitting body. This design enables tight connections without soldering, making it common in plumbing and HVAC. Unions and adapters allow quick disassembly for service or instrument changes.
Common Configurations And Definition
A common setup uses a female compression nut, a ferrule olive, and the fitting body. The nut threads onto the fitting body and compresses the ferrule to grip the tube. Installers often use unions, straight fittings, or elbow bodies to adapt direction and access during maintenance.
Choosing Compatible Materials
Brass and copper are typical choices for refrigerant fittings and hot-water lines due to their ability to handle thermal cycles and resist deformation. Stainless steel is chosen for high-pressure or corrosive environments. PEX and PVC are often used in condensate and domestic water runs, but they require proper inserts or specific ferrules for secure joints.
Typical Uses In Plumbing, HVAC Refrigerant Lines, And Instrumentation
For plumbing systems, female compression fittings link stops, valves, and supply lines without solder. For HVAC systems, technicians use them on refrigerant fittings between compressor, condenser, and evaporator where service access is critical. Instrumentation systems and gas lines commonly need compression parts for leak-tight, serviceable connections.
Comparing Female Compression Fittings, Male Fittings, And Adapters
Female fittings accept a male end and form the receiving thread, while a 3 8 Male Compression Fitting provides that mating male component for tubing or ports. A 3/8 Valve Adapter helps technicians interface service valves and gauges to the system. Using correctly matched materials limits galvanic corrosion and keeps joints reliable under pressure and thermal change.
| Fitting Component | Typical Material | Usual Application | Service Note |
|---|---|---|---|
| Compression nut | Brass | Water supply lines and valve fittings | Change it if cracked or stripped |
| Ferrule sleeve | Brass or stainless steel | Creates compression seal on compatible tubing | Often should be replaced during service |
| Body of fitting | Brass, stainless steel | Refrigerant service and instrumentation | Match to refrigerant type and pressure rating |
| 3 8 male compression adapter | Brass/copper options | Small-diameter line connection to female ports | Check thread form and sealing seat |
| 3/8 valve adaptor | Machined brass | Gauge and manifold connections | Use with proper seals for refrigerant fittings |
| Installation Parts Supply source | Various | Source for matched kits and replacements | Match ferrules and nuts to protect system life |
Plumbing And HVAC Fitting Types, Sizes, And Related Adapters
This section delves into the various fitting types, sizes, and adapters essential for plumbing and HVAC projects. Installers use couplings, elbows, unions, and adapters to manage line routing, component isolation, and service access. Choosing these components significantly impacts system performance, including pressure rating, temperature limits, and reliability.
Compression couplings and related unions support the creation of removable joints for maintenance and testing. Couplings are ideal for straight connections, while compression unions are better suited for components that need to be disconnected without disrupting the line. For small-diameter applications, a 3/8 Compression Coupling is often used in instrumentation and refrigeration applications.
Elbows and adapters help with tubing routing around obstacles and for connecting different types of fittings. A 3 8 Male Compression Fitting can connect to a female port or adapter, facilitating the integration of service valves and gauges. Installation Parts Supply catalogs include a wide range of these components, supporting quick access on job sites.
Picking the correct fitting size matters, depending on the tube’s outside diameter and the ferrule and nut set. Ensure that the female compression fitting size matches the tube OD to prevent leaks. When working with 3/8″ lines, verify ferrule compatibility and torque specifications. You should also confirm the system’s maximum pressure and temperature ratings before making a final selection.
Specialized parts like the Max Adaptor and 3/8 Valve Adapter are designed for connecting gauges, service ports, and small refrigerant lines. These adapters simplify the process of charging and diagnostics in HVAC systems. During HVAC diagnostics, a 3/8 Valve Adapter is commonly used to link manifold hoses to service valves on compact systems.
Material selection is a trade-off between durability and corrosion resistance. Stainless steel provides strong corrosion resistance and durability, making it suitable for harsh environments. Brass and copper are good for refrigerant circuits and heat transfer lines due to their balance of machinability and corrosion protection. PVC and PEX can be used in low-pressure condensate and water lines but not for high-pressure refrigerant service.
The environmental performance of fittings relates to leak prevention and recyclability. Correctly installed metal fittings help reduce refrigerant emissions and can be recycled at the end of their life. Sourcing reliable parts from reputable distributors reduces failures and minimizes long-term environmental risk.
Below is a comparison to help choose between common options by application, pressure, temperature, and reusability.
| Connection Type | Primary Application | Max Pressure Typical | Typical Temperature Range | Reuse Potential |
|---|---|---|---|---|
| Compression coupling in brass | Instrument lines, small water lines, and refrigeration uses | As high as 3,000 psi when specified | -65°F to 250°F | Limited, because ferrules are often replaced |
| Compression Union brass/stainless | Serviceable joints, maintenance access | As high as 2,500 psi | Approximately -65°F to 300°F | High, because it is designed for disconnects |
| 3/8 Compression Coupling | Instrumentation, refrigerant lines, and small plumbing runs | Rating varies by system and material | Verify material specification for HVAC use | Some reuse possible, but service replacement is common |
| 3 8 male compression connector | Adapter to service valves and gauges | Refrigerant-rated when made and specified correctly | Suitable for typical HVAC cycles | Reusable if inspected and intact |
| Brass/stainless Max Adaptor | Specialized coupling for gauge and valve interfaces | High rating for suitable service tools | Meets HVAC temperature cycles | Built for repeated connection and removal |
| PVC/PEX fittings | Low-pressure water and condensate lines | Low pressure only; not for refrigerant service | 32°F to 140°F typical | Reusable in some systems; limited life under UV |
When sourcing parts, check Installation Parts Supply or other reputable distributors for part numbers, material options, and pressure ratings. Make sure the chosen 3/8 Valve Adapter or Max Adaptor matches both the tubing OD and the service fitting type to avoid mismatches on site.
Installation, Best Practices, And Maintenance
Correct compression fitting installation begins with clean, square pipe ends and the right parts. For refrigerant lines in HVAC systems, use copper and brass. On chilled water or condensate runs, PVC or PEX is best. Always follow manufacturer specs and ASME B31.5 to minimize energy loss and leaks.
How compression fittings are installed
1. Start by cutting and deburring the tube to a square face. 2. After that, slide the nut and ferrule onto the pipe in that order. 3. When using soft plastic tubing, insert pipe inserts to keep the tube round before assembly. 4. Start by hand-tightening the nut, then use the two-wrench technique to finish the joint.
Recommended tools and techniques
Apply the two-wrench technique to hold the fitting body and turn the nut to prevent tube twist. Use torque guidance from the fitting maker or Installation Parts Supply when available. Many installers snug by hand, then add a limited number of wrench turns.
Where pipe inserts should be used
Pipe inserts are essential for soft plastic tubing like PEX or thin-wall PVC to prevent ovalization and ensure a leak-free seal. Do not use inserts in solid copper or thick-walled metal tubing, where inserts can interfere with proper ferrule compression.
Common errors and ferrule removal
Avoid tightening too little or too much. Too little tightening can cause leaks; over-tightening deforms the ferrule and can make ferrule removal difficult. Ferrules are usually single-use; plan to replace them when disassembling a joint.
Ferrule removal procedure
Start by isolating the supply and releasing pressure. Grip the fitting body with one wrench while loosening the nut with a second. Take off the nut and slide the ferrule away. If the ferrule remains tight, apply penetrating oil, use a ferrule puller, or carefully cut the ferrule off without nicking the pipe.
Installing a 3/8 Valve Adapter
For small lines like a 3/8″ valve connection, prepare the tubing the same way and follow the two-wrench technique. The 3/8 Valve Adapter process mirror larger fittings but require careful attention to torque guidance to avoid crushing the tube or the adapter threads.
Routine inspection and maintenance
After pressurizing, inspect joints for weeps and tighten slightly if needed. Make regular checks for corrosion and thermal fatigue, particularly on refrigerant circuits. Try not to locate compression joints where vibration will loosen them over time.
| Process Step | What To Do | Best-Practice Tip |
|---|---|---|
| Prepare | Prepare a clean, square, deburred pipe end | Use proper cutting and deburring tools |
| Assembly | Slide on the nut and ferrule, then insert into the fitting | Use inserts where plastic tubing may deform |
| Final Tightening | Hand-tighten, then use two wrenches | Follow manufacturer torque guidance |
| Testing | Test under pressure and check joints | Check for small leaks and tighten slightly when appropriate |
| Routine Service | Check routinely and change ferrules when joints are opened | Keep spares from Installation Parts Supply for quick repairs |
Summary
Selecting the proper compression fitting is essential for plumbing and HVAC work. The material choice, whether brass, copper, stainless steel, PVC, or PEX, must fit the service type. That supports reliability and extends system life. Well-matched parts and sound installation help cut energy losses and refrigerant leaks, preserving performance and environmental health.
Compression fittings offer a leak-free, solder-free solution. They consist of a nut, ferrule, and body. To ensure a tight seal, follow these steps: square-cut and deburr the tubing, use the two-wrench technique, and replace ferrules when reused. These steps support long-lasting, leak-tight connections in various applications, from copper piping to instrumentation.
For specific needs, such as 3/8″ lines, 3/8 Compression Coupling, or 3/8 valve adapters, it’s essential to match size and pressure ratings to the task. Trusted-supplier parts are essential. Installation Parts Supply resources can assist in finding compatible fittings and adapters. Regular inspections and proper selection maintain system efficiency and compliance.
In summary, dedicating time to material selection and correct assembly is important. That helps ensure durable, leak-free connections. It allows for optimal performance, fewer repairs, and less environmental harm.
